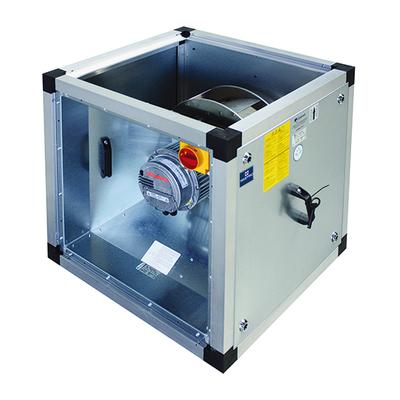

Airbox With High-Efficiency Ec Motor Outside the Airflow, 8150 M³/h, virtus DBZ0033
- Afmetingen:
67x67x67 cm - Made In:
Duitsland - Vermogen (ELEK):
1540 W - Voltage:
~400 V - Levering:
Palletvervoer
EC-Technology is intelligent technology, it is based on the optimal use of the motors through an integrated electronic control. EC fans are characterized by their economical use of energy and their excellent controllability. the speed can be adjusted and work by that way more efficient. Therefore, they consume significantly less energy than AC-fans with the same air output. Another special feature of EC motors is their energy-saving potential not only in full-load operation but also in part-load operation. in part-load operation, they lose far less of their efficiency than asynchronous motors of the same power. A reduction in energy consumption guarantees a reduction in operating costs. High efficiency EC engine out of the airflow. Control with potentiometer. Medium temperature up to 120°C. Blow-out position variable. Housing double-walled. Housing with condensate tray and 1" drain. Volume flow optimized motor plate. High quality seals. Revision door with handle and quick release.
49 dB(A), IP 55.
49 dB(A), IP 55.
Krachtig 400 volt apparaat
Dit product heeft een krachtstroom aansluiting.
Vaak samen gekocht
Deze combinaties worden aangeraden door de fabrikant, dus dat zit goed!
-
Mastro DDZ0010Mastro Snelhedenregelaar, 5 Snelheden, 7 A, 400 V | DDZ0010
- Elektrisch
- 2800 W
- (B)38 x (D)18 x (H)38cm
683,- 683,- Incl. btwPre-order
Specificaties
Algemeen
- Artikelnummer (SKU)
- VT-DBZ0033
- MPN
- DBZ0033
- Merk
- Virtus
- Kleurgroep
- Grijs
- Garantie
- 12 maanden
- Garantievoorwaarden
- Garantie op onderdelen, Installatie door erkend installateur noodzakelijk
Afmeting, Inhoud, Gewicht en Capaciteit
- Model
- Inbouwmodel
- Breedte
- 67 cm
- Diepte
- 67 cm
- Hoogte
- 67 cm
- Gewicht
- 70 kg
- Bruto gewicht
- 74 kg
Afzuiging
- Capaciteit (m3/uur)
- 8150
Energie en Milieu
- Uitvoering
- Elektrisch
- Extra elektrische informatie
- 380-415 V, 1,536 kW electric, 50 Hz, 3F+N fase
- Vermogen (Elektrisch)
- 1540 Watt
- Vermogen (Totaal)
- 1536 Watt
- Voltage
- ~400 V
- Frequentie (Hz)
- 50 Hz (Netfrequentie)
- Netspanning
- AC 400V 3F+N 50Hz: Krachtstroom
Overige Kenmerken
- Gemaakt in
- Duitsland
Leverancier en Fulfillment
- Type Transport
- Palletvervoer
Codes & Compliance
- Leverancier SKU
- DBZ0033
- HS Code
- 84145925
Extra productinformatie
- RPM
- 1504
- R.p.m.
- 1504
- Current
- 2,2
- Eigenschappen
- EC-Technology is intelligent technology, it is based on the optimal use of the motors through an integrated electronic control. EC fans are characterized by their economical use of energy and their excellent controllability. the speed can be adjusted and work by that way more efficient. Therefore, they consume significantly less energy than AC-fans with the same air output. Another special feature of EC motors is their energy-saving potential not only in full-load operation but also in part-load operation. in part-load operation, they lose far less of their efficiency than asynchronous motors of the same power. A reduction in energy consumption guarantees a reduction in operating costs. High efficiency EC engine out of the airflow. Control with potentiometer. Medium temperature up to 120°C. Blow-out position variable. Housing double-walled. Housing with condensate tray and 1" drain. Volume flow optimized motor plate. High quality seals. Revision door with handle and quick release.49 dB(A), IP 55.
