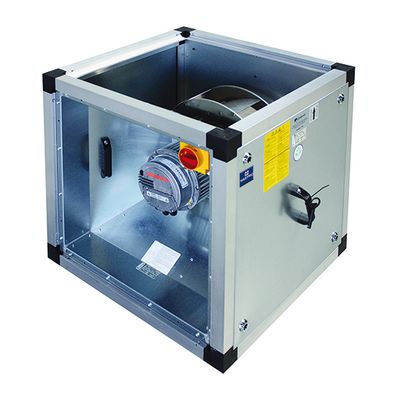

Airbox With High-Efficiency Ec Motor Outside the Airflow, 3000 M³/h, virtus DBZ0030
- Afmetingen:
50x50x50 cm - Made In:
Duitsland - Vermogen (ELEK):
310 W - Voltage:
~230 V - Levering:
Palletvervoer
EC-Technology is intelligent technology, it is based on the optimal use of the motors through an integrated electronic control. EC fans are characterized by their economical use of energy and their excellent controllability. the speed can be adjusted and work by that way more efficient. Therefore, they consume significantly less energy than AC-fans with the same air output. Another special feature of EC motors is their energy-saving potential not only in full-load operation but also in part-load operation. in part-load operation, they lose far less of their efficiency than asynchronous motors of the same power. A reduction in energy consumption guarantees a reduction in operating costs. High efficiency EC engine out of the airflow. Control with potentiometer. Medium temperature up to 120°C. Blow-out position variable. Housing double-walled. Housing with condensate tray and 1" drain. Volume flow optimized motor plate. High quality seals. Revision door with handle and quick release.
42 dB(A), IP 55.
42 dB(A), IP 55.
Vaak samen gekocht
Deze combinaties worden aangeraden door de fabrikant, dus dat zit goed!
-
Mastro DDZ0007Mastro Snelhedenregelaar, 5 Snelheden, 3 A, 230 V | DDZ0007
- Elektrisch
- 690 W
- (B)20 x (D)17 x (H)25cm
178,- 178,- Incl. btwPre-order
Specificaties
Algemeen
- Artikelnummer (SKU)
- VT-DBZ0030
- MPN
- DBZ0030
- Merk
- Virtus
- Kleurgroep
- Grijs
- Garantie
- 12 maanden
- Garantievoorwaarden
- Garantie op onderdelen, Installatie door erkend installateur noodzakelijk
Afmeting, Inhoud, Gewicht en Capaciteit
- Model
- Inbouwmodel
- Breedte
- 50 cm
- Diepte
- 50 cm
- Hoogte
- 50 cm
- Gewicht
- 31,2 kg
- Bruto gewicht
- 34 kg
Afzuiging
- Capaciteit (m3/uur)
- 3000
Energie en Milieu
- Uitvoering
- Elektrisch
- Extra elektrische informatie
- 220-240 V, 0,313 kW electric, 50 Hz, 1F+N fase
- Vermogen (Elektrisch)
- 310 Watt
- Vermogen (Totaal)
- 313 Watt
- Voltage
- ~230 V
- Frequentie (Hz)
- 50 Hz (Netfrequentie)
- Netspanning
- AC 230V 1N 50Hz: Regulier
Overige Kenmerken
- Gemaakt in
- Duitsland
Leverancier en Fulfillment
- Type Transport
- Palletvervoer
Codes & Compliance
- Leverancier SKU
- DBZ0030
- HS Code
- 84145925
Extra productinformatie
- RPM
- 1508
- R.p.m.
- 1508
- Current
- 1,3
- Eigenschappen
- EC-Technology is intelligent technology, it is based on the optimal use of the motors through an integrated electronic control. EC fans are characterized by their economical use of energy and their excellent controllability. the speed can be adjusted and work by that way more efficient. Therefore, they consume significantly less energy than AC-fans with the same air output. Another special feature of EC motors is their energy-saving potential not only in full-load operation but also in part-load operation. in part-load operation, they lose far less of their efficiency than asynchronous motors of the same power. A reduction in energy consumption guarantees a reduction in operating costs. High efficiency EC engine out of the airflow. Control with potentiometer. Medium temperature up to 120°C. Blow-out position variable. Housing double-walled. Housing with condensate tray and 1" drain. Volume flow optimized motor plate. High quality seals. Revision door with handle and quick release.42 dB(A), IP 55.
